QuantumX MX809B: 高电势下极高安全性

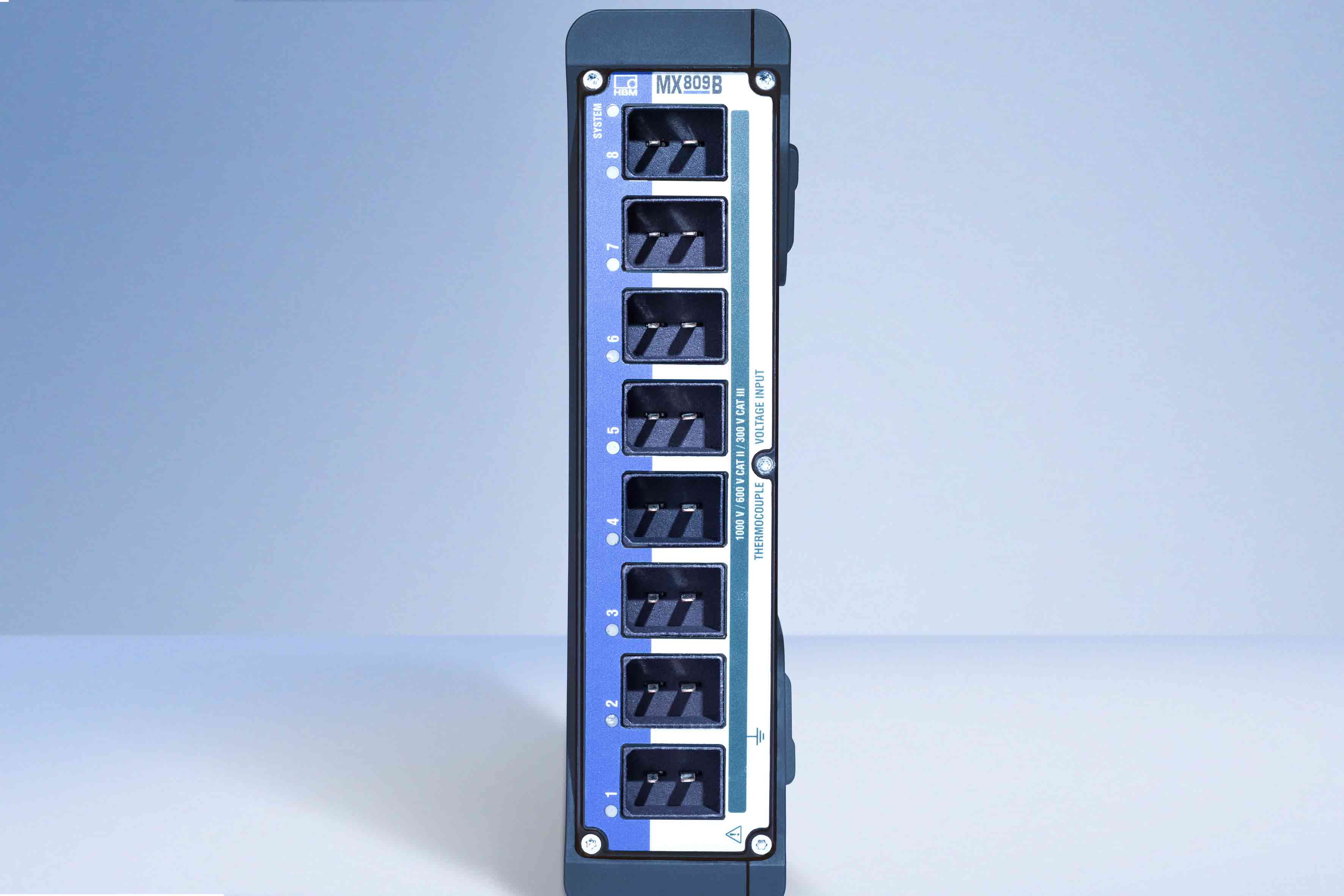

最新的 QuantumX MX809B 测量模块提供 8个通道,用于 高电势电压和温度测量。所有通道均支持常规 热电偶,例如 K, J, N, T, E型等。电压测量范围为 +/- 5V。该模块提出了创新性绝缘新概念以满足所有的安全需求: 双绝缘测量导线和标准的 thermo Mini 插头 (IEC, ANSI) 以及接触保护和安全专利(绝缘帽),能够防止与危险的带电部件直接接触,确保高度可靠的测量 。

MX809B 典型应用领域包括电机、发电机,整流器或逆变器,充电器的测试与分析,尤其是 能源存储系统(高压电池)和燃料电池。在电池测试中,放大器可在高达 1,000 V 电势下对最小单元电压和温度进行精确测量。创新性绝缘新概念使其在 电压峰值高达 2,400 V 情况下,安全也可得到保障。可以用于实验室和现场测试。

极高安全性

    • 创新性的隔离和安全概念
    • 双层绝缘测量导线
    • 标准 thermo Mini 插头 (IEC, ANSI)
    • 接触保护和安全专利(绝缘帽
    • VDE 测试和认证

独创的耦合概念,防止与危险的带电部件直接接触,确保高度可靠的测量

灵活性

    • 用于测试台和路测
    • 通过透明绝缘帽,电偶型号可见
    • 容易通过 MX403B 扩展:
    • 可在范围 +/- 10, 100 或 1,000 V,II 和 III 类电压下进行测量
    • 通过插头或电流钳进行电流测量
    • 可进行总谐波失真(THD)分析
    • 用户可断开和连接耦合

通过事先布线和定制传感器电缆长度,满足不同的需求

容易集成

  • 通过以太网连接到 PC
  • catman 软件支持
  • 通过 (.NET API), LabVIEW™ 或 CANape 驱动集成到其他系统
  • 通过 EtherCAT,测量信号实时集成 (CX27B) 自动化系统

可采用 分布式 或是 中央式 进行系统集成
