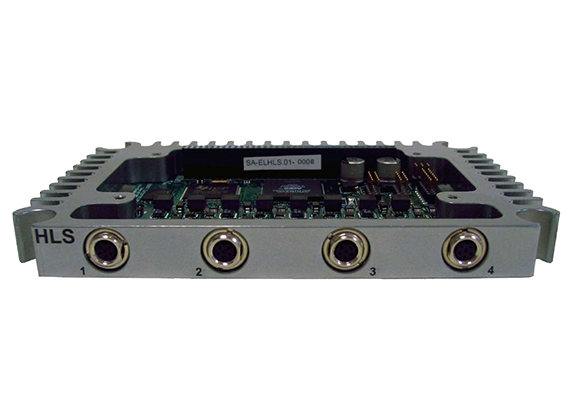

The Somat eDAQlite Simultaneous High Level Layer (ELHLS) offers four simultaneously sampled high-level differential analog inputs through independent connectors. Up to eight ELHLS layers can be added to a single eDAQlite system, enabling up to 32 channels. Networking multiple eDAQs make synchronous ELHLS channel counts virtually limitless.
The ELHLS can inherently handle any analog input from +/- 80V, and together with the Somat SMART conditioning modules, is a real multipurpose layer. Practically any input—thermocouples, strain gauges, accelerometers, microphones, or amplified and unamplified transducers—can be utilized with this layer. Software-selectable sample rates, transducer power, and digital filtering simplify the set-up of any channel. There are also several calibration options, including defined value, external, and multipoint, as well as shunt calibrations with embedded software tools offered with the Strain SMART Module.
Size: 6.9"W x 5.6"L x 0.7"H (18cm W x 14cm L x 2cm H)
Weight: 0.91lbs (0.42kg)
Temperature: -20° to 65° C
Connectors: (4) Somat M8 Female Bulkhead Connector
Minimum full-scale: ±62.5mV
Maximum full-scale: ±80V
10MΩ = Rages up to +/- 10V
100kΩ = Ranges greater than +/- 10V
Resolution: 16-bit ADC, across specified full-scale range
Sample Rates: Independently set
100 kHz Master Clock= 0.1Hz to 100 kHz
98.3 kHz Master Clock= 0.1 Hz to 98,304Hz
4V to 15V in 1V increments, 24V
400mW per channel
Analog: 25 kHz, 8-pole Butterworth low-pass filter
Digital: Software selectable; 8-pole Butterworth and Linear Phase
(4) Somat SAC-TRAN-MP-2 Transducer Cables (2 m)
