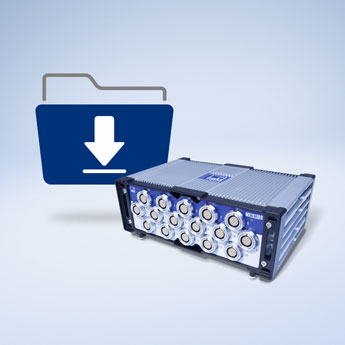

Downloads for QuantumX & SomatXR
Important: All QuantumX modules are delivered with firmware version 4 since March 2014. The firmware of existing modules can be updated. If you use catman Easy/AP, version 3.5 is the minimum requriement. Please see below for further information.
Please register on our website to start the download. If you already have a user account, simply log in using your email address.
Firmware QuantumX / SomatXR MX Modules & CX Gateways
Título | Descrição | Data | Versão | Tamanho | Documentos Relacionados |
|---|---|---|---|---|---|
| MX/CX-Module (B version and older) | Modules: all B type modules like MX840B/-R, MX471B/-R, … and CX27B (not for CX22B/-R-W, CX27C or MX471C/-R). Necessary tools: MX Assistant or catman Easy/AP | 07/2023 | 4.46.16.0 | 14 MB | Release Notes EN Release Notes DE |
| MX/CX-Module (C version and MXFS) | Modules: all C type modules like CX27C/-R and MX471C/-R and MXFS. Necessary tools: MX Assistant or catman Easy/AP | 07/2023 | 4.46.16.0-C | 114 MB | Release Notes EN Release Notes DE |
System Software for QuantumX & SomatXR
Título | Descrição | Data | Versão | Tamanho | Documentos Relacionados |
|---|---|---|---|---|---|
| HBM Device Manager | The HBM Device Manager is a service tool to scan the network for available HBM devices. | 12/2019 | 2.0 | 7 MB | Release Notes |
| QuantumX / SomatXR System Package | Hint: Please unzip the package and then execute “start.exe” to install: • MX Assistant • HBM Device Manager • All manuals, datasheets, step files, online help files, leaflets, etc. | 07/2023 | 4.14.1 | 609 MB | Release Notes EN Release Notes DE |
Test & Measurement Software for QuantumX & SomatXR
Título | Descrição | Data | Versão | Tamanho | Documentos Relacionados |
|---|---|---|---|---|---|
| catman Easy / AP / PostProcess | Software for data acquisition, visualization, analysis and reporting of measurement data for your PC or QuantumX/SomatXR Data Recorder. | 05/2024 | 5.6.3 | 473 MB | Release Notes |
Driver Software for QuantumX & SomatXR
Título | Descrição | Data | Versão | Tamanho | Documentos Relacionados |
|---|---|---|---|---|---|
| HBM CANape Driver 32-bit | The driver allows you to integrate all QuantumX / SomatXR measurement modules in CANape 13.0, 14.0, 15.0 and 16.0. | 06/2018 | 4.1.5 | 11 MB | Release Notes |
| HBM CANape Driver 64-bit | The driver allows you to integrate all QuantumX / SomatXR measurement modules in CANape 17.0 and 18.0. | 01/2021 | 4.1.6 | 12 MB | Release Notes |
| HBM LabVIEW Driver 32-bit | The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in LabVIEW. Please see the Release Notes for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. | 02/2021 | 4.0 | 24 MB | Release Notes |
| HBM LabVIEW Driver 64-bit | The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in LabVIEW. Please see the Release Notes for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. | 02/2021 | 4.0 | 24 MB | Release Notes |
| HBM DIAdem Driver | The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in DIAdem (32 and 64 Bit). Only available in German language. Please see the Release Note for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. | 03/2024 | 1.4.0 | 67 MB | Release Notes |
| HBM Common API 6.3 | The HBM Common API enables users to develop their own PC software application, integrating DAQ systems like QuantumX, SomatXR, PMX and MGCplus. The download includes the free of charge API as well as documentation and example programs in C#. | 05/2024 | 6.3 | 29 MB | Release Notes |
CX27 Interface Files for QuantumX & SomatXR
Título | Descrição | Data | Versão | Tamanho | Documentos Relacionados |
|---|---|---|---|---|---|
| PROFINET GSDML File | GSDML file and picture for QuantumX / SomatXR CX27C Gateway | 06/2018 | V2.33 | 5 KB | |
| EtherCAT ESI File | ESI files for QuantumX / SomatXR CX27B and CX27C Gateway | 02/2020 | 5.6 | 56 KB |
Download archive
Click here for archived QuantumX and SomatXR software and firmware
QuantumX and SomatXR products are partly build up on third party code under GPL (GNU General Public Licence). You can download the source code under GPL from the archive.
