HBK Amplified Force Sensors

Part of our force measurement portfolio is optionally available with an integrated amplifier. This gives HBK customers a choice between force transducers and strain sensors with the following output signals:

Classic analogue mV/V
Voltage output 0…10 V
Current output 4…20 mA

The amplifiers’ technical specifications are perfectly matched to the sensor. Depending on which product you choose, the amplifier is either integrated into the sensor or implemented inline in separate housing. In any case, the dimensions of the sensor do not differ from the respective classical analogue model.

Your benefits:

Cost- and time-efficient

No need for space in the cabinet
Easy integration
Economical measurement solution

Meets quality standards

Calibration certificates available
Traceable measurement results

Robust and reliable

With IP67 degree of protcetion
Shock and vibration tested

Available Products:

	MINIATURE	STANDARD	LARGE FORCES	STRAIN SENSORS
NOMINAL CAPACITIES	50 N... 50 kN	0.5 kN... 200 kN	200 kN... 10 MN	n.a.	n.a.

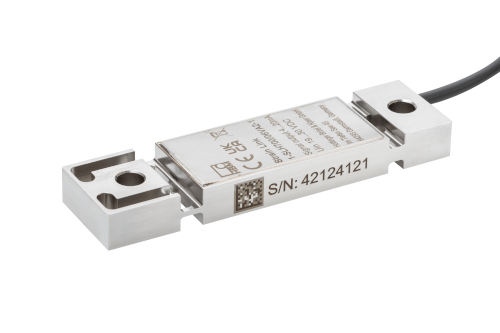

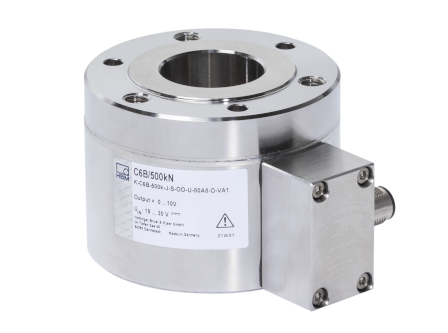

COMPRESSION	C9C	C2	C6B	SLH700VA	SLB700A/06VA
TENSION AND COMPRESSION	U9C	U2B	*	SLH700VA	SLB700A/06VA
TENSION AND COMPRESSION FORCE WITH FLANGE MOUNTING	U93A	-	-	-	-
AMPLIFIER	INLINE	**INTEGRATED	**INTEGRATED	**INTEGRATED	**INTEGRATED
OUTPUT	0-10 V, 4-20 mA, IO-Link	0-10 V, 4-20 mA	0-10 V, 4-20 mA	0-10 V, 4-20 mA	0-10 V, 4-20 mA

^{*Contact us for a way to measure large tensive and compressive forces with an active load cell.}

^{**With the same external dimensions as the passive version of the sensor.}
