QuantumX MX430B: Precision and Maximum Interference Suppression

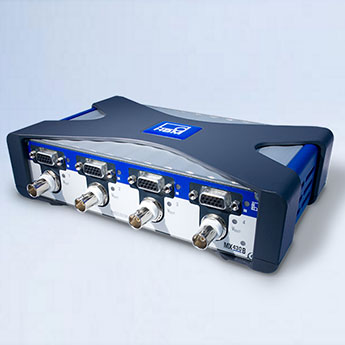

MX430B is the precise and compact module of the QuantumX family. It provides four inputs for accurate measurement of strain gauge full bridge based sensors such as uni- or multiaxial force sensors, torque transducers as well as pressure sensors. HBM provides the entire measurement chain for efficient measurement: precise sensors, the QuantumX MX430B measurement module and suitable software.

Precise force and torque measurement is essential, in particular when the objective is to determine the exact balance in aerodynamic tests of vehicles, aircraft or sports equipment in the wind tunnel. MX430B is also well suited for other test bench applications demanding high precision and reliability such as the determination of the center of gravity of rockets, measurement analysis of fuselage or load analysis in engine test benches. The module is lightweight and compact and thus allows for portable use for servicing in machine and sensor calibration.

Precision

  • 4 strain gauge full bridge inputs offer a minimum accuracy of 100 ppm
  • Precision with repetitive and long-term measurements
  • Withstands interferences such as electromagnetic radiation or temperature thanks to carrier frequency analysis

Particularly well suited for test bench applicationsdemanding high precision and reliability such as aerodynamic analyses in the wind tunnel

Flexibility

  • Precise validation of quantities such as force, torque and pressure
  • For static and dynamic measurements
  • Distributable, therefore requiring minimal wiring effort
  • Flexible parameterization, through use of every channel in either AC or DC mode

Enhanced long-term stability through patented background calibration

Easy Integration

  • Allows for portable use for servicing in machine and sensor calibration
  • TEDS support enables sensors to be quickly and reliably replaced
  • Real-time integration thanks to directly scalable voltage outputs (+/- 10 V) with optional filter, EtherCAT (CX27B), CAN (MX471B)
  • Reliable catman software support

Efficient and dynamic system analysis with full bandwidth

Technical Documentation

題目/描述語言
參數表
English
German
Chinese
產品手冊
English
English (US)
German
Portuguese
Japanese
Chinese
操作手冊
English
English
German
English
Japanese
Chinese
English, German
English, German
附件
Italian
English
English
German
German, English
English
Declaration of Conformity
多語言
多語言
Russian
Russian
Tech Notes

This TECH NOTE describes in general the digitalization path in QuantumX data acquisition modules, explaining anti-aliasing filter, analog to digital conversion, digital filtering, scaling, datarate and distribution of data within the data acquisition system or to a data sink whether this is a storage medium or gateway.

English

This TECH NOTE shows available and tested PTP components together with HBM equipment and can be used as reference source giving you some recommendations.

English

This TECH NOTE explains the highly accurate time sync mechanism Precision Time Protocol or short PTP, its advantages and its use in Test & Measurement applications.

English

This TECH NOTE describes the real-time functionality of the QuantumX MX430B Precision Bridge Module.

English

Diese TECH NOTE behandelt die Kompensation von Querabhängigkeiten (Englisch: cross-talk) und damit den Einfluss parasitärer Effekte auf die jeweilige Messgröße. Die Kompensation dieses sogenannten Übersprechens kann in Echtzeit mit der HBM Messtechnik QuantumX oder online in der Software catmanEasy erfolgen.

German
