採用 HBM 測量技術進行橋樑監控


Žeželj 大橋是多瑙河上的拱橋,用於連接塞爾維亞諾維薩德的鐵路和公路交通。建於1961年,由著名的土木工程師 BrankoŽeželj 設計,並採用獨特的預應力混凝土施工,許多人對橋樑的耐久性有疑問。所以,為了讓群眾放心,布蘭科在測試過程中在橋下划船.



Žeželj 大橋正在重建,預計到2017年底將完成施工。其設計將與舊橋類似,但材料將由鋼拱結構構成。長達474米,將承載兩條鐵軌,兩條機動車車道,兩條自行車和行人專用道.


Mechanical structure of a bridge

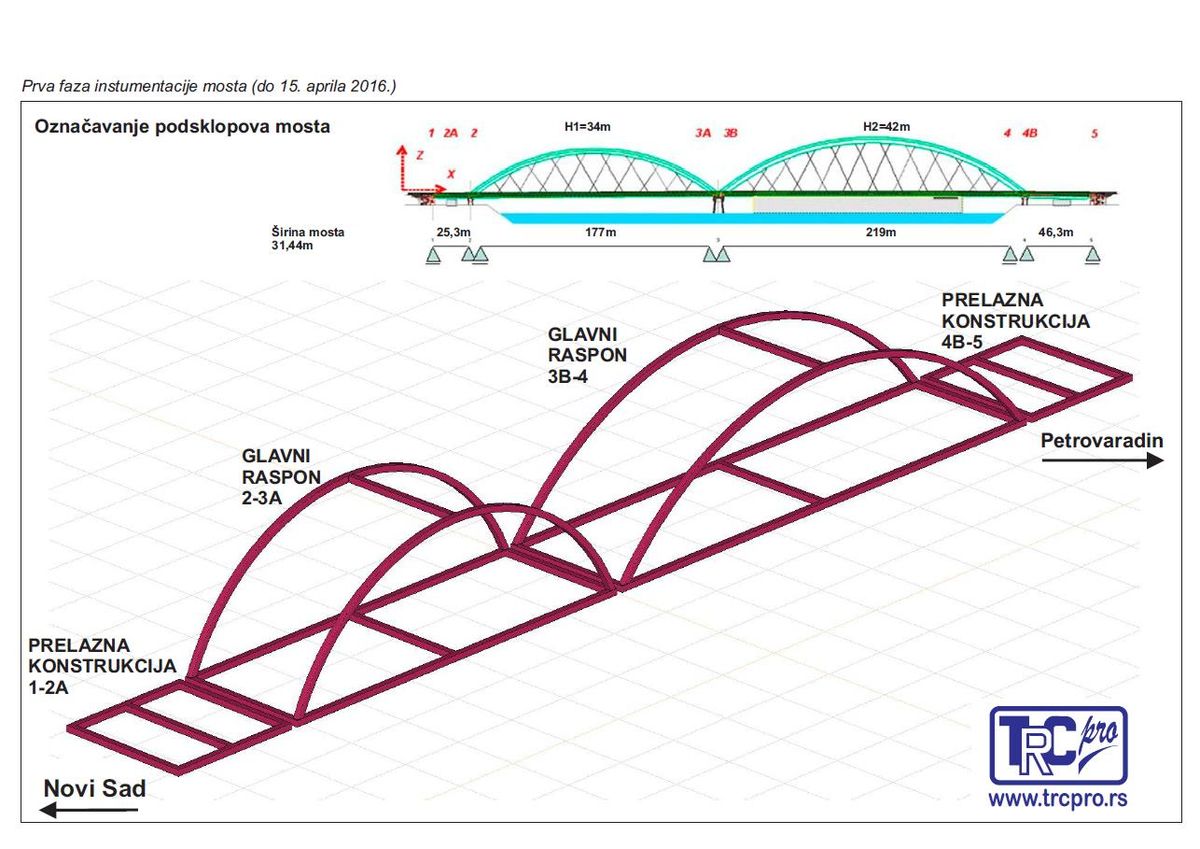

Mechanical structure of the new bridge (TRC graphic)

Modern designs require efficient monitoring concepts

The behavior of railway and traffic bridges requires the most complex monitoring system due to the varying type and intensity of loads and also because a bridge's structural safety is important in everyday life.

The Department for Civil Engineering and Geodesy (FTN - The Faculty of Technical Sciences, Novi Sad) in cooperation with TRC PRO (Technical Research Center) have been using HBM’s measurement technology for the safe construction of the new Railway Traffic Bridge.

Structural Health Monitoring is performed through a set of activities that includes observation, data acquisition, transfer and analysis of data acquired by long time measurement during the bridge's exploitation. The goal for monitoring the bridge’s structural health is to form a database for tracking the behavior of the bridge's structure in order to avoid any potential deterioration in the bridge's safety and performance (the bearing capacity, stiffness, serviceability and durability).

Critical bridge sections

This project comprises of a distributed multichannel configuration for permanent observation of the critical bridge sections:

  • Experimental stress analysis (durability testing): 4 mid span zones, 8 support zones and 2 zones during launching;
  • Force measurement in hangers: 12 hangers;
  • Vertical displacements: 12 mid span zones and 8 support zones;
  • Longitudinal displacements: 4 support zones;
  • Inclinations: 12 mid span zones and 9 support zones;
  • Acceleration, frequency and damping parameters: 12 mid span zones and 9 support zones and
  • Temperature measurement in the bridge structure: 12 mid span zones and 9 support zones.
Installed strain gauge on a bridge
Strain-gauge sensor with temperature compensation applied attached directly on to the bridge structure (TRC picture)
Protected strain gauge
Strain gauge measuring point with protection cover (TRC picture)
PMX Data Acquisition System on the bridge
Position of the PMX measurement and control system on the new bridge
Bridge structure with PMX

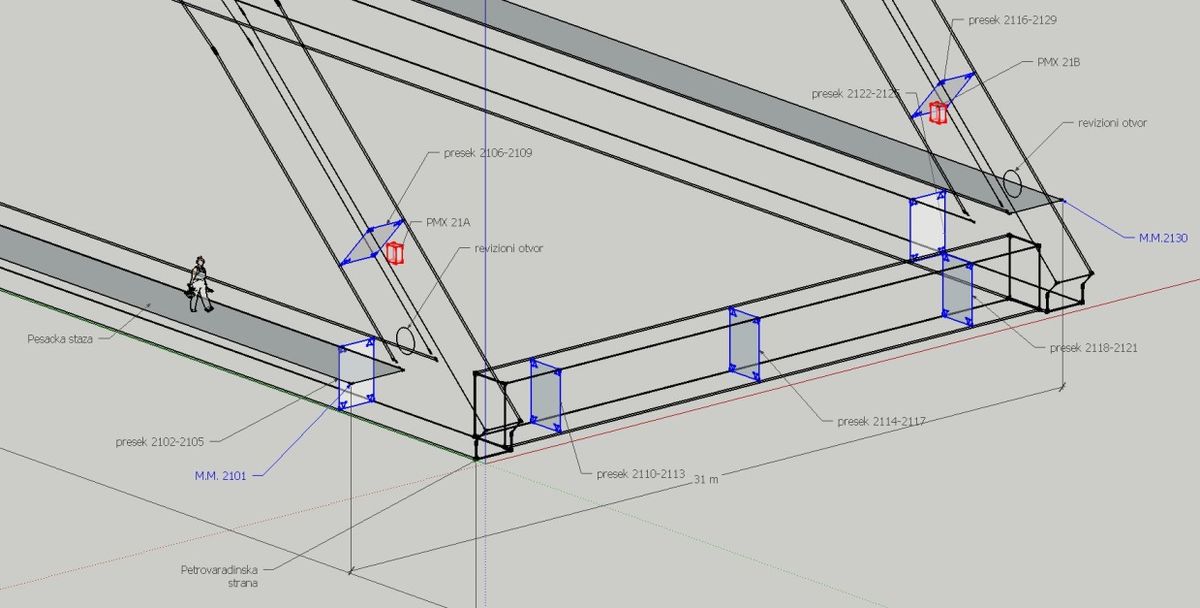

Bridge structure with position of the PMX monitoring systems (marked in red)
Construction and monitoring detail

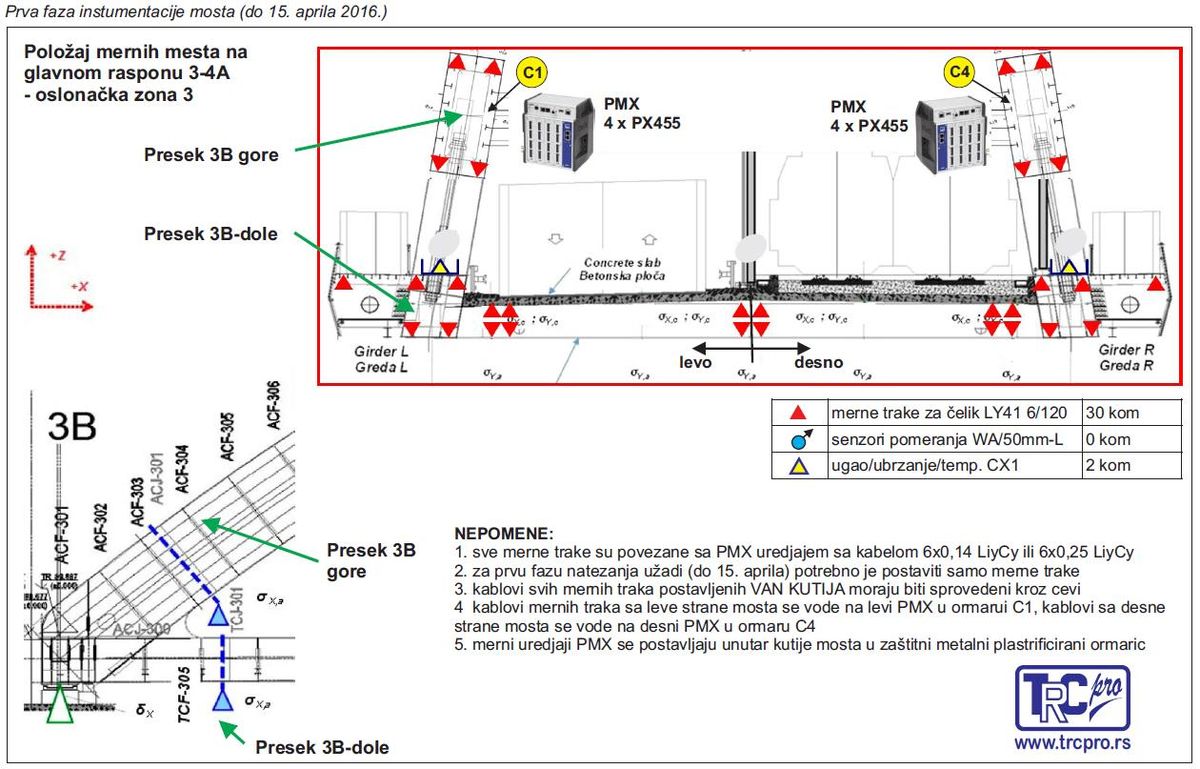

Construction and monitoring detail in a support zone

472 sensors installed

The total number of installed sensors and transducers is 472:

  • 328 HBM strain gauges (LY41-series) in 14 sections (the experimental stress analysis),
  • 80 force transducers (force monitoring in hangers)
  • 12 displacement transducers in 4 movable support sections (for horizontal displacements),
  • 32 bi-axial inclinometers (for bi-axial inclination and vertical displacement from acceleration measurements) with embedded tri-axial accelerometers
  • and temperature sensors in 20 structural sections and one section of central pier zone.
PMX Data Acquisition System
PMX Data Acquisition System

Reliable sensor technology

The basic instruments used for the measurement are strain-gauges, which are attached directly to the structure of the bridge or as sensing element in the force sensors. Strain-gauge based sensors have the advantage of high long-term stability. This is important in this project because they are operational during the whole lifetime of the new bridge and it is not possible to stop the monitoring for recalibration.

In addition to this, the HBM strain gauges of the LY41-series, which are used in this application, offer a good temperature compensation, which is a must, as the structure is faced with several weather and temperature conditions.

For data acquisition, HBM's PMX system is being used.

After the installation, the measuring point is covered to prevent damage and electromagnetic interference (EMI).

Adjustments can be made directly at the measurement point

The measurement and data acquisition and control system has to fulfill several tasks: Fast and reliable measurements, easy set-up, real-time calculations, diagnosis information, no additional software installation and efficient pricing.  All this can be achieved with the PMX measurement and control system.

As an additional protection against dust and EMI, the PMX data acquisition unit was mounted in a cabinet, which is a cost-effective solution and also includes the power supply.

In the first step, all signals are sampled with 19.2 kHz, which guarantees a high measurement-bandwidth and evaluation of the measurement signals. All adjustments to the PMX system are handled via the standard Ethernet-interface and the internal PMX webserver.

This solution offers a great benefit: Adjustments can be done directly at the installation point or via the Ethernet network at the control room or even remotely if additional WiFi is available. So each engineer is able to have a real-time view of the application and the status of the test. An integrated operator-control prevents unsecure operations.

PMX mounted in a cabinet
PMX monitoring system mounted in a cabinet in the bridge structure (TRC picture)
Screenshot of the PMX webserver
PMX webserver overview with measuring signals, calculated signals and I/O signals (HBM)

Data storage concept

The requirements captured several tasks. For long-term monitoring, all data from the PMX systems are transmitted via the Ethernet-network in the bridge to a data-server for evaluation and control. But, as a backup, each PMX has an internal data-logger and stores the data with a time-stamp in its internal memory. So the measurement-data won’t get lost in case a breakdown of the Ethernet network. After the re-establishment of the network, the data can be transferred from each PMX station to the data-server.

Building a condition monitoring network

The PMX monitoring systems run all over the bridge, which is a distance of approx. 500 meters. But to get valuable measurement results, the sample rate of each PMX system and each measuring channel must be synchronized. Therefore, each PMX system offers an option of synchronization.

Powerful real-time calculation with the PMX Smart functions

In the second step, the desired and relevant information has to be calculated in real time. This can be done with the Smart-functions of PMX, which can be used easily by the operator without having any advanced software skills. The Smart-functions include several mathematical functions like a pocket calculator, logical functions, process evaluations up to controller functions like PID-controller.

Real-time diagnosis with PMX monitoring system

A detailed and deeper diagnostic is stored in the PMX Log-file. This file is stored in the internal memory of the PMX. It covers all upcoming errors in the device and measurement, as well as any changes in the parameterization done by the operators. This allows a 100% coverage of the entire testing and measurement process.

Data collection and evaluation

The engineer team defined in the requirements an easy-to-use, robust and powerful DAQ and evolution software. “The subsystem for data processing (multipurpose computer system for data acquisition, transfer and processing of data) acquired from HBM’s PMXs uses a custom developed user friendly HBM software for data presentation in HBM catman”, says Hotimir Licen of TRC PRO.

With catman, the complete data storage and visualization can be realized. Different graphical user-panels and data-loggers can be set-up for different monitoring tasks. In addition, an event monitoring system with combined email send-out or push-notification to a mobile phone is possible. This offers an immediate feedback from the monitoring task and the controller of the bridge can react and set the right traffic sign to regulate the traffic on the bridge to lower the stress on the bridge.

Data logging with PMX
Data logging with PMX

“We found the PMX WebServer to be a very helpful tool for parameterization, setup and control. We didn’t need any additional software and could use the standard WebBrowser on our PCs, tablet or smartphone. Moreover, it is permanently available in real-time over the whole bridge area”

Hotimir Licen from TRC PRO

Good results also with limited budgets

Since the budget for structural health monitoring was limited, the PMX platform was chosen as a solution due to the excellent price-performance ratio. According to Hotimir Licen from TRC PRO, it offered the following advantages:

  • Excellent accuracy and high resolution
  • The ability to measure both static and dynamic events
  • A universal system for strain gauge and inductive bridge sensors
  • Stress analysis with hardware temperature compensation of each channel in half bridge configuration.
  • A distributed system with an Ethernet interface
  • A synchronized measurement of all channels via NTP time synchronization
  • A stand-alone operation with data storage on a local USB disk at the PMX system and remote access on a PC with the HBM catman software.
