LY Linear Strain Gauges with 1 Measuring Grid

Series LY is the first choice for strain measurements in only one direction. With types LY1, LY2, LY4, LY5, LY6, LY7 , LY8 and LY9 we offer you linear strain gauges (SGs) in various geometries and sizes, each available with temperature responses adapted  to the following materials:

  • Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); temperature matching codes: 1
  • Aluminum (23 ppm/K; 12.8 ppm/°F); temperature matching codes: 3
  • Austenitic steel (16 ppm/K, 8.9 ppm/°F); temperature matching codes: 5
  • Silica/composite (0,5 ppm/K; 0.3 ppm/°F); temperature matching codes: 6
  • Titanium and gray cast iron (9 ppm/K; 5.0 ppm/°F); temperature matching codes: 7
  • Plastic (65 ppm/K; 36.1 ppm/°F); temperature matching codes: 8
  • Molybdenum (5.4 ppm/K; 3.0 ppm/°F); temperature matching codes: 9

Insert the temperature matching code in place of the placeholder “x” to get the ordering number of the strain gage you need. Strain gauges with # characterized are only available in matches for aluminum, ferritic and austenitic steel

Save time and efforts:  LY4 strain gauges are available as pre-wired versions with connection cable

Strain gauges available in 120, 350, 700 and 1,000 Ohms


Measuring grid consists of constantan, measuring grid carrier is polymide


Fast delivery for preferred strain gauge types -  available from stock!



Ordering number

Nominal (rated) resistance

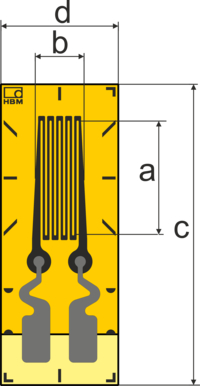

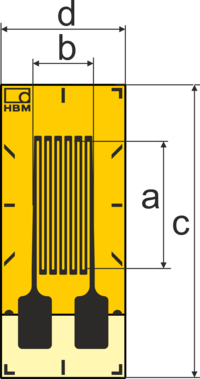

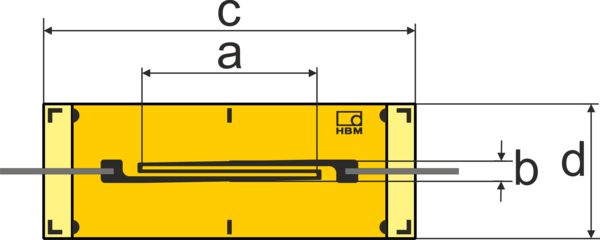

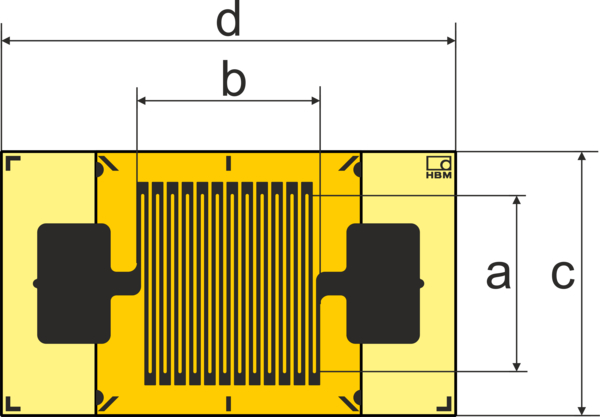

Dimensions [mm/inch]

Vmax

Solder terminals

Preferred types

Measuring grid

Carrier

Ω

a

b

c

d




1-LY1x-0.3/120#

120

0.3
0.012

0.9
0.035

2
0.079

1.2
0.047

0.6

LS7

1

1-LY1x-0.6/120#

120

0.6
0.024

1
0.039

5
0.197

3.2
0.126

1.5

LS7

1, 3

1-LY1x-1.5/120

120

1.5
0.059

1.2
0.047

6.5
0.256

4.7
0.185

2.5

LS7

1, 3

1-LY1x-3/120

120

3
0.118

1.6
0.063

8.5
0.335

4.5
0.177

4

LS7

1, 3

1-LY1x-3/120A

120

3
0.118

1.6
0.063

8.5
0.335

4.5
0.177

4

LS7

1

1-LY1x-6/120

120

6
0.236

2.7
0.106

13
0.512

6
0.236

8

LS5

1, 3

1-LY1x-6/120A

120

6
0.236

2.7
0.106

13
0.512

6
0.236

8

LS5

1

1-LY1x-10/120

120

10
0.394

4.6
0.181

18.5
0.728

9.5
0.374

13

LS5

1, 3

1-LY1x-10/120A

120

10
0.394

4.6
0.181

18.5
0.728

9.5
0.374

13

LS5

1

1-LY1x-1.5/350

350

1.5
0.059

1.2
0.047

5.7
0.224

4.7
0.185

4.5

LS7

1, 3

1-LY1x-3/350

350

3
0.118

1.6
0.063

8.5
0.335

4.5
0.177

7

LS7

1, 3

1-LY1x-3/350A

350

3
0.118

1.6
0.063

8.5
0.335

4.5
0.177

7

LS7

-

1-LY1x-6/350

350

6
0.236

2.8
0.11

13
0.512

6
0.236

13

LS5

1, 3

1-LY1x-6/350A

350

6
0.236

2.8
0.11

13
0.512

6
0.236

13

LS5

-

1-LY1x-10/350

350

10
0.394

5
0.197

18.5
0.728

9.5
0.374

23

LS5

1

1-LY1x-10/350A

350

10
0.394

5
0.197

18.5
0.728

9.5
0.374

23

LS5

-




Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals

Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY2x-0.6/120#

120

0.6
0.024

0.6
0.024

3.5
0.138

6.4
0.252

1

LS7

1

1-LY2x-1.5/120

120

1.5
0.059

1.5
0.059

4.7
0.185

8.3
0.327

2

LS5

-

1-LY2x-3/120

120

3
0.118

2.8
0.11

7.5
0.295

10
0.394

6

LS5

1

1-LY2x-6/120

120

6
0.236

6
0.236

11
0.433

16
0.63

12

LS4

-



Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals
are not compulsory





Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY4x-0.6/120#

120

0.6
0.024

1.1
0.043

6
0.236

4
0.157

1.5

LS5

1

1-LY4x-1.5/120

120

1.5
0.059

1.2
0.047

7
0.276

5
0.197

2.5

LS5

1

1-LY4x-3/120

120

3
0.118

1.2
0.047

8
0.315

5
0.197

3.5

LS5

1, 3

1-LY4x-3/120A

120

3
0.118

1.2
0.047

8
0.315

5
0.197

3.5

LS5

-

1-LY4x-6/120

120

6
0.236

2.7
0.106

13.9
0.547

5.9
0.232

8

LS5

1, 3

1-LY4x-6/120A

120

6
0.236

2.7
0.106

13.9
0.547

5.9
0.232

8

LS5

1

1-LY4x-10/120

120

10
0.394

4.9
0.193

18
0.709

8
0.315

14

LS5

1

1-LY4x-10/120A

120

10
0.394

4.9
0.193

18
0.709

8
0.315

14

LS5

-

1-LY4x-20/120

120

20
0.787

0.5
0.02

31.8
1.252

8.2
0.323

6.5

LS5

1

1-LY4x-50/120

120

50
1.969

0.8
0.031

63.6
2.504

8.2
0.323

12

LS5

1

1-LY4x-100/120

120

100
3.937

1
0.039

114.8
4.520

8.2
0.323

19

LS5

1

1-LY4x-150/120

120

150
5.906

1.2
0.047

165.6
6.520

8.2
0.323

25

LS5

1

1-LY4x-1.5/350#

350

1.5
0.059

2.3
0.091

9.2
0.362

5.9
0.232

6.5

LS5

1

1-LY4x-3/350

350

3
0.118

2.5
0.098

10.9
0.429

5.9
0.232

9

LS5

1, 3

1-LY4x-3/350A

350

3
0.118

2.5
0.098

10.9
0.429

5.9
0.232

9

LS5

1

1-LY4x-6/350

350

6
0.236

2.8
0.110

13.9
0.547

5.9
0.232

15

LS5

1, 3, 6

1-LY4x-6/350A

350

6
0.236

2.8
0.110

13.9
0.547

5.9
0.232

15

LS5

-

1-LY4x-10/350

350

10
0.394

5
0.197

18
0.709

8
0.315

24

LS5

1

1-LY4x-10/350A

350

10
0.394

5
0.197

18
0.709

8
0.315

24

LS5

-

1-LY4x-3/700

700

3
0.118

2.7
0.106

10.9
0.429

5.9
0.232

13

LS5

1, 3

1-LY4x-6/700

700

6
0.236

4.1
0.161

13.9
0.547

5.9
0.232

23

LS5

1

1-LY4x-10/700

700

10
0.394

5
0.197

18
0.709

8
0.315

33

LS5

-

1-LY4x-3/1000#

1000

3
0.118

2.7
0.106

10.9
0.429

5.9
0.232

16

LS5

-

1-LY4x-6/1000

1000

6
0.236

4.2
0.165

13.9
0.547

5.9
0.232

27

LS5

1

1-LY4x-10/1000

1000

10
0.394

5
0.197

18
0.709

8
0.315

40

LS5

-



Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals

Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY5x-3/120

120

3
0.118

0.4
0.016

9
0.354

4.7
0.185

2

LS7

-

1-LY5x-6/120

120

6
0.236

0.4
0.016

13
0.512

4.7
0.185

3

LS7

-



Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals





Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY6x-1.5/120

120

1.5
0.059

1
0.039

7.8
0.307

4.7
0.185

2.5

-

1

1-LY6x-3/120

120

3
0.118

1.5
0.059

9.8
0.386

4.7
0.185

4

-

1

1-LY6x-6/120

120

6
0.236

2.7
0.106

16
0.63

6.3
0.248

8

-

1, 3

1-LY6x-10/120

120

10
0.394

4.6
0.181

23.5
0.925

9.3
0.366

13

-

1

1-LY6x-3/350A

350

3
0.118

1.6
0.063

9.8
0.386

4.7
0.185

7

-

-

1-LY6x-3/350

350

3
0.118

1.6
0.063

9.8
0.386

4.7
0.185

7

-

1

1-LY6x-6/350A

350

6
0.236

2.8
0.110

16
0.63

6.3
0.248

13

-

1

1-LY6x-6/350

350

6
0.236

2.8
0.110

16
0.63

6.3
0.248

13

-

1, 3, 6

1-LY6x-10/350

350

10
0.394

5
0.197

23.5
0.925

9.3
0.366

21

-

1







Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals
are not compulsory





Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY7x-0.6/120#

120

0.6
0.024

1
0.039

2.3
0.091

5.6
0.22

1

LS7

1

1-LY7x-1.5/120

120

1.5
0.059

1.5
0.059

3.4
0.134

7.5
0.295

2.5

LS5

1

1-LY7x-3/120

120

3
0.118

2.8
0.11

5.5
0.217

10.5
0.413

5

LS4

1

1-LY7x-6/120

120

6
0.236

6
0.236

9
0.354

15.5
0.61

10

LS4

-

1-LY7x-1.5/350#

350

1.5
0.059

1.6
0.063

3.4
0.134

7.5
0.295

5

LS5

1, 3

1-LY7x-3/350

350

3
0.118

2.7
0.106

5.5
0.217

10.5
0.413

8.5

LS4

1

1-LY7x-6/350

350

6
0.236

5.6
0.22

9
0.354

15.5
0.61

18

LS4

-



Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Solder terminals are not compulsory





Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY8x-0.6/120#

120

0.6
0.024

1
0.039

5.6
0.22

2.3
0.091

1

LS7

-

1-LY8x-1.5/120

120

1.5
0.059

1.5
0.059

7.5
0.295

3.4
0.134

2.5

LS5

1

1-LY8x-3/120

120

3
0.118

3
0.118

10.5
0.413

5.5
0.217

5

LS4

1

1-LY8x-6/120

120

6
0.236

6
0.236

15.5
0.61

9
0.354

10

LS4

-

1-LY8x-1.5/350#

350

1.5
0.059

1.5
0.059

7.5
0.295

3.4
0.134

5

LS5

1

1-LY8x-3/350

350

3
0.118

3
0.118

10.5
0.413

5.5
0.217

8.5

LS4

-

1-LY8x-6/350

350

6
0.236

5.6
0.22

15.5
0.61

9
0.354

18

LS4

1




Ordering number

Nominal (rated) resistance

Dimensions [mm/inch]

Vmax

Preferred types

Measuring grid

Carrier

Ω

a

b

c

d



1-LY9x-1.5/350_E

350

1.5
0.059

2
0.079

4.7
0.185

6.6
0.26

5

1

1-LY9x-3/350_E

350

3
0.118

2
0.079

6.3
0.248

7
0.276

7.5

1

1-LY9x-6/350_E

350

6
0.236

3.8
0.149

9.5
0.374

9.5
0.374

15

1
