SomatXR MX471C-R: Integrate up to four CAN networks synchronously

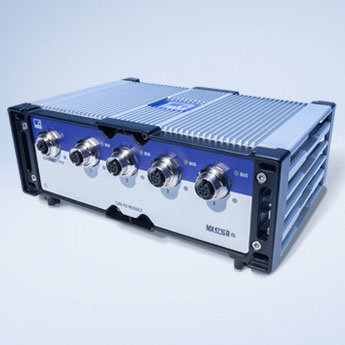

The SomatXR MX471C-R CAN bus module allows the simultaneous integration of up to four CAN networks into the SomatXR data acquisition system. This module is the more rugged version of the QuantumX MX471C and is ideal for use in extremely tough conditions, such as vehicle tests in the field and on the test track due to its IP65/IP67 degree of protection and high shock and vibration resistance.

Worldwide unique: The SomatXR MX471C-R integrates any number of CAN nodes into the SomatXR data acquisition system. It enables the synchronous recording of CAN signals and the data provided by analog measurement modules. All the CAN messages can be recorded as a raw-data stream and then decoded in the PC or on the recorder. Alternatively, real-time decoding in the module itself enables the integration of CAN signals into a test bench. The module is compatible with classic CAN, as well as CAN-FD, which is used in modern vehicles to enable the communication of the control units.

Extremely durable

  • IP65/IP67 degree of protection (dust and water)
  • Reliable even in the event of continuous vibration loading up to 10 g
  • Shock-proof up to 75 g
  • Can be used over a broad temperature range of -40 °C to +80 °C

Suitable for use in harsh applications in the field due to its shock resistance and IP65/IP67 degree of protection

Powerful

  • Compatible with many protocols such as CAN FD (ISO CAN FD 11898-1:2015) and classic CAN (CAN 2.0 A/B)
  • A single device for receiving data, changing the data type and compilation, and sending data
  • High data transfer rates of up to 4 MBit/s
  • Easy connection via Ethernet incl. gateway function for other MX modules

Powerful integration providing many protocols and high data rates

Versatile integration

  • Synchronous integration of up to four CAN networks
  • Optimal integration into the SomatXR/QuantumX family
  • Four individually configurable, electrically isolated channels
  • Extensive range of accessories, such as cables, connectors, drivers, and DAQ software

Suitable for demanding tasks due to the simultaneous integration of up to four CAN channels
