안전하고, 신뢰할 수 있고 정밀한 데이터 수집 및 제어 장치입니다.
PMX 산업용 데이터수집장치 : 테스트 벤치와 생산라인을 위한 혁신적인 솔루션
PMX는 정확하고 신뢰할 수 있는 데이터를 측정하는 다채널 어플리케이션 측정용 앰프 입니다.
산업용 이더넷 인터페이스를 통해 데이터가 처리되며 TCP/IP 인터페이스를 통한 사용하기 쉬운 웹 인터페이스를 제공합니다.
IEC-61131 의 규정에 따른 내부의 Soft PLC를 통해 소규모의 자동화 테스트도 가능합니다.
- 한 시스템 당 2-16 채널 지원 (하나의 개별 시스템을 연동하여 수백 채널로 확장 가능)
- 정확도: 0.05 등급 (자가 교정 시스템 지원)
- 인터페이스: Profinet, EtherCAT, Ethernet IP, TCP/IP
- 사물 인터넷 IoT (Internet of Things) 어플리케이션 지원 (remote diagnosis, web integration)
정밀함
- 모든 측정 데이터는 장치에 직접 저장되는 교정 프로토콜을 통해 추적할 수 있습니다(EN10204에 따름).
- 힘 센서와 토크 센서의 측정 상태를 디지털 신호로 조정 및 제어 할 수 있습니다.
- 산업용 이더넷 인터페이스에 적합한 샘플링 속도 및 넓은 대역폭을 지원합니다.
모듈식 구조
- 필요한 아날로그 입력과 통신 인터페이스에 따라 개별 모듈 장착 가능
- PMX 모듈 확장 시: 간단한 케이블 연결을 통한 동기화 가능
- LabVIEW/DIAdem 드라이버와 API 지원
사용자의 요구에 맞는 구성으로 각 어플리케이션에 최적화 된 솔루션을 제공합니다.
간편한 조작
- 웹 인터페이스(WEB-GUI)를 통한 측정 및 제어
- IEC-61131에 따른 SoftPLC 통합 지원 (옵션: Codesys)
- TEDS를 통한 자동 센서 감지 기능 지원
- 신호 처리 및 분석 채널 지원으로 간편한 함수화 지원
최신 스마트폰처럼 간편하게 조작할 수 있는 데이터 수집 시스템으로 웹 브라우저 인터페이스를 통한 측정, 제어, 계측 값의 함수화가 가능합니다.
새로운 제품: 컨테이너 계량, 제어 및 선별 스케일을 위한 통합 알고리즘
프로세스 최적화: 새로운 프로세스 알고리즘은 통합된 PMX 웹 서버를 통해 쉽게 파라미터화 할 수 있습니다. 알고리즘은 실시간으로 작동하여 기계 제어를 완화하며 최적의 결과를 보장합니다.
PMX 데이터 수집 시스템
여러 가지의 플러그인 카드 및 인터페이스 연결 가능- 소프트웨어 드라이브 지원: API, LabVIEW, DIAdem
- ePlan 매크로 파일 무료 다운로드
더욱 자세한 정보는 데이터시트 및 작동 메뉴얼을 확인하세요.
Wall or DIN rail-mount basic device (WGX)
WGX002 basic device
- Wall or DIN rail-mount basic device for 5 PMX modules for up to four measurement or two I/O modules and one real-time Ethernet fieldbus module.
- Max. 16 measurement inputs with 24-bit A/D converter and up to 38.4 kHz sampling rate per channel.
- 32 real-time calculation channels with peak/limit values and mathematical and scientific functions.
- Short setup time and test cycles thanks to up to 1000 parameter sets/measurement programs stored in the PMX.
- USB 2.0 host interface.
- Integrated, password-protected 3-level user interface (worker/service/administrator)
WGX001 basic device
- Specifications: Identical with WGX002
- With additional CODESYS Soft PLC (IEC61131-3) as well as web visualization and CANopen (ISO11898) interface.
PX401 - Measurement module for analog input signals and active sensors
HBM accuracy class: 0.1
- Four-channel measurement module.
- Analog input signals and active sensors (+/-10 V voltage, +/-20 mA current).
- Including sensor supply and 1-Wire-TEDS (sensor identification).
PX455 - Measurement module for full and half bridges, force transducers and load cells
HBM accuracy class: for full bridge 0.05 - for half bridge 0.1
- Four-channel measurement module.
- Measurement module for full and half bridges, force transducers and load cells (strain gauges, inductive sensors, LVDT, potentiometric sensors).
- Including 0-Wire-TEDS (sensor identification).
- In combination with SD01A Zener barriers, sensors can also be operated as intrinsically safe devices in potentially explosive atmospheres, measurement circuit type (Ex II (1) GD, [EEx ia]IIC).
- Piezoresistive full bridge
- Resistance thermometer (Pt 100)
PX460 - Modulo di Misura Frequenze ed Operazioni di Conteggio
HBM accuracy class: 0.01
- Four-channel measurement module.
- Four torque flanges (T10, T12, T40) for torque or rotational speed measurement.
- Channels 1 and 3: Frequency measurement.
- Channels 2 and 4: Frequency (digital,/inductive), counter, encoder, SSI, PWM (TMC protocol soon available).
- Including two times shunt calibration and two times 1-Wire-TEDS (sensor identification).
PX878 - Multi-I/O Module with digital and analog outputs
HBM accuracy class: 0.1
- Eight digital inputs, eight digital outputs, five analog outputs (± 10 V).
- I/O functions are freely adjustable.
- Measurement channels or calculation channels can be output via the analog signals.
Industrial Ethernet Interface Cards
- PMX can optionally be equipped with a ProfiNET, EtherCAT or Ethernet/IP interface.
- All modules have been certified in compliance with the user organization.
- A device description file is included in delivery
- PX01PN: Real-time Ethernet card (ProfiNET device) for automation tasks via ProfiNET (RT and IRT protocol).
- PX01EC: Real-time Ethernet card (EtherCAT slave, up to 9.6 kHz frame rate).

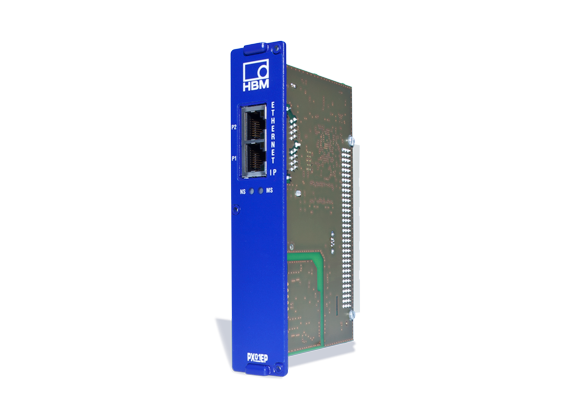

- PX01EP: Ethernet/IP interface card for integrating PMX with Ethernet/IP networks.
PMX Software - fast access to production data -- flexible and easy to use
PMX WebServer - integrated in the device: Standardized software interfaces ensure access to all device parameters for configuration, control and analysis. Completely new software and control technology, so far only known from smart phones and tablet PCs, has been used for the first time in test and measurement technology.
- PMX-WebServer integrated in the device.
- Three different user levels with corresponding user rights are available to ensure access to the PMX and the process.
- Standardized software interfaces ensure access to all device parameters for configuration, control and analysis.
- Ethernet technologies and Internet now also allow cost savings in remote maintenance.
- Complex and error-prone software installation belongs to the past.
- Users and administrators benefit from easy, intuitive control.
Measurement data analysis and quality assurance using other softwares:
Catman is the professional tool for measurement engineers and the measured data can be saved in different formats, for example BIN, RPCIII, MAT, ASCII or XLS.
The PMX driver package allows integration into LabVIEWTM*, DIAdem*, MLab (sd.Solutions) or proprietary software using .NET API (C++, C#, VB.NET).
First steps with PMX:
Sensor adjustment with PMX:
