Soldering Terminals for Strain Gauges

For strain gauges with leads or wires, solder terminals should be installed between the connecting cables and the strain gauge itself. This will facilitate the execution of a perfect solder joint and provide strain relief for the strain gauge connections.

The solder terminals are installed in the same way on the test object as on the strain gauge.

HBK offers solder terminals in various designs and dimensions.

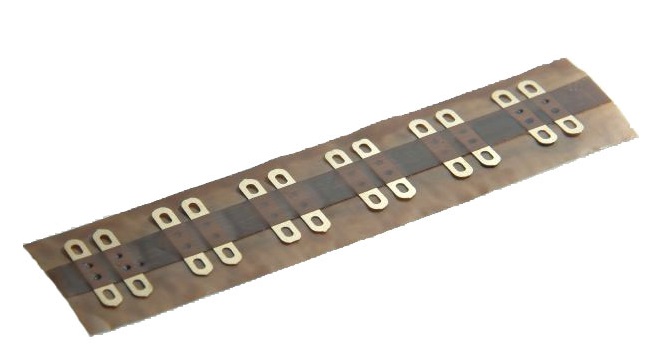

LS2 Soldering Terminal

Bronze soldering tag on polyimide carrier suitable for dynamic loads.
Attachment to test object by bonding.
Can be used up to 180°C (356°F), briefly up to 260°C (500°F)

	Dimensions (mm/inch)				Distance	Contents per package
Product number	Solder tag		Carrier
	a	b	c	d	t
1-LS2	2.6 0.102	13.5 0.531	72 2.835	20 0.787	4 0.157	36 pairs (6 strips) HBMshop

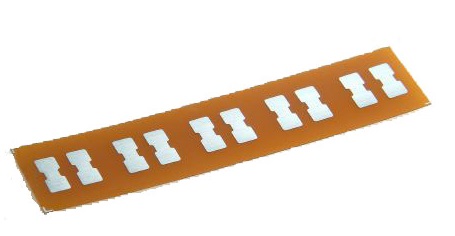

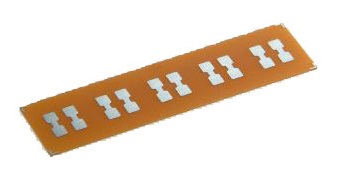

LS7, LS5, LS4 Soldering Terminals for Strain Gauges

Attachment to test object by bonding
Can be used up to 180°C (356°F), briefly up to 260°C (500°F)

Available in two variants

Gold plated (option -G)

Copper, gold-plated, on polyimide
The gold coating enables fast, easy and safe soldering:
- Removing the oxide layer and cleaning is no longer necessary
- Soldering can be carried out directly
Only suitable for applications on materials with high thermal conductivity

Self adhesive (Option _S)

Copper, nickel-plated, on polyimide
The rear side of the solder terminal is equipped with an adhesive layer protected by tape.
This option brings the following advantages:
- No additional adhesive required
- Quicker and cleaner installation
- Installation on challenging areas (overhead, on radial surfaces…)

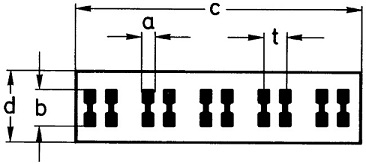

	Dimensions (mm/inch)				Distance	Contents per package
Product no	Solder tag		Carrier
	a	b	c	d	t
1-LS7-G	1 0.039	3 0.118	21 0.827	6 0.236	2 0.079	125 pairs (25 strips each)HBMshop
1-LS7_S	1 0.039	3 0.118	21 0.827	6 0.236	2 0.079	125 pairs (25 strips each) HBMshop
1-LS5-G	1.5 0.059	4.5 0.177	35 1.378	10 0.394	2.5 0.098	125 pairs (25 strips each) HBMshop
1-LS5_S	1.5 0.059	4.5 0.177	35 1.378	10 0.394	2.5 0.098	125 pairs (25 strips each) HBMshop
1-LS4-G	2.5 0.098	6.5 0.256	50.1 1.972	13 0.512	4 0.157	125 pairs (25 strips each) HBMshop
1-LS4_S	2.5 0.098	6.5 0.256	50.1 1.972	13 0.512	4 0.157	125 pairs (25 strips each) HBMshop

LS212 Soldering Terminals for Strain Gauges

Copper, gold-plated on polyimide
Attachment to test object by bonding
Can be used up to 180°C (356°F), briefly up to 260°C (500°F)
Only suitable for applications on materials with high thermal conductivity

	Dimensions (mm/inch)				Distance	Contents per package
Product number	Solder tag		Carrier
	a	b	c	d	t
1-LS212-G	3.7 0.146	6 0.236	47.5 1.870	8 0.315	1 0.039	125 pairs (25 strips)HBMshop

LS224 Soldering Terminals for Strain Gauges

Copper, gold-plated, on polyimide
Attachment to test object by bonding
Can be used up to 180°C (356°F), briefly up to 260°C (500°F)
Only suitable for applications on materials with high thermal conductivity

	Dimensions (mm/inch)				Distance	Contents per piece
Product number	Solder tag		Carrier
	a	b	c	d	t
1-LS224-G	6.5 0.256	6 0.236	45 1.772	8 0.315	1 0.039	150 pairs (25 stripes)HBMshop

Soldering Pad for high temperature Strain Gauges

For special applications which require the use of soldering tabs in extremely high/low temperature regions, this product is the right choice.

Temperature Range: -196°C to 350°C
Dimensions (W x L x d), in mm: 5-pole 6 x 25 x 0,1; 1-pole 6 x 5 x 0,1
Conductor Material: Copper foil
Contents per package: 100 pairs; (20 sheets/ 5 poles per sheet)

HBMShop

FS01 Flux Pen Grid Element

The flux pen is a practical soldering aid in felt pen format for production of smaller soldering connections. Suitable for solders with melting points up to 350°C (662°F). The flux pen contains non-corrosive flux without chloride.

Package contents: 5 pcs
Product no: 1-FS01

HBMshop

Heat-Resistant Polyimide Tape

The polyimide tape is suitable for all standard strain gage application procedures to ensure safe positioning of the strain gage on the workpiece.
The temperature application range is -70°C to +260°C (-94°F to 500°F).

Package contents: 33m (108.27ft) heat-resistant polyimide tape (19 m / 0.748 inch wide, ca. 70 μm / 2756 microinch total thickness
Product no: 1-KLEBEBAND

HBMshop

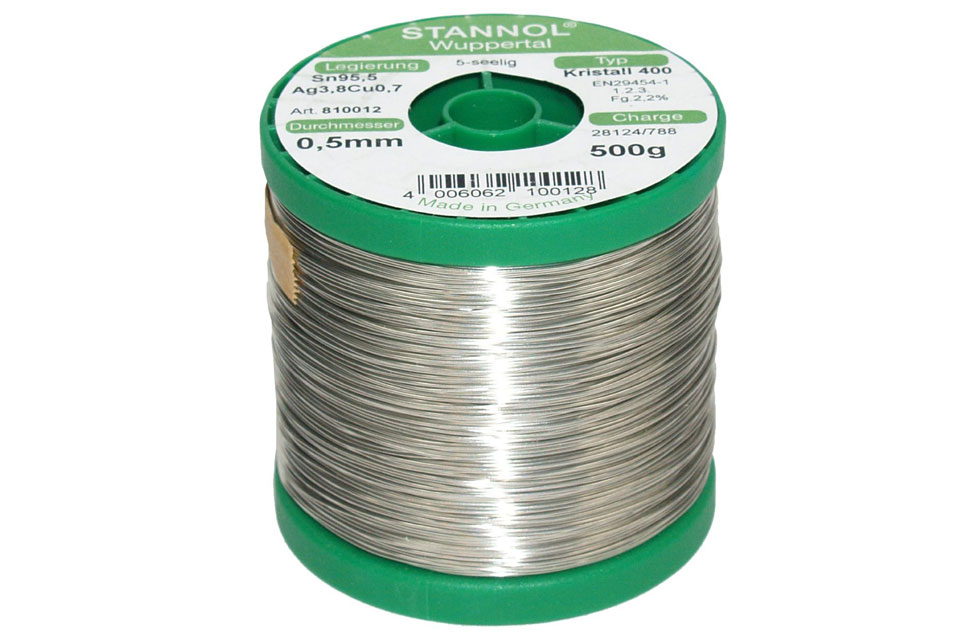

Lead-free Solder

For strain gauge applications
Diameter: 0.5mm
Consisting of solder: Sn95.5Ag3.8Cu0.7
The flux is non-corrosive
Melting range: 217°C to 219°C
Delivery form: 500g on reel
Product No: 1-LOT-LF

HBMshop
