シグナルコンディショナーClipX:高精度で統合しやすい次世代コンパクト設計

ClipXは精度クラス0.01と内蔵の校正データシートにより、産業プロセス制御に新スタンダードを築く次世代シグナルコンディショナーです。シングルまたはマルチチャネルを必要とするアプリケーション、製造用システム、テストベンチまたは製造ラインのモニタリングなどで求められる計測タスクに最適なソリューションを提供します。 プラグ・アンド・プレイで、最大6台のデバイスを同時に接続することができ、計測データの事前演算が可能です。 従来型のシグナルコンディショナーとは異なり、ClipXは直接のデータ処理が可能で別モジュールを必要としません。

シグナルコンディショナーClipXは、デバイスを既存制御ネットワークに完全に統合できる最新インタフェースを備えています。 遠隔操作、パラメータ設定、診断も可能な直感的なWebインタフェースにより誰でも簡単にClipXを操作できます。

  • 精度クラス:0.01
  • センサ入力:フルブリッジおよびハーフブリッジひずみゲージ、圧電式センサ、ポテンショメータ、Pt100、電流、および電圧
  • インタフェース:PROFINET、EtherCAT®、PROFIBUS、イーサネット/ IP™、Modbus-TCP、アナログ(V / mA)デジタルI / O、イーサネット(TCP / IP)
  • IIoT(Industrial Internet of Things)対応:Web統合、データ保存* OPC-UAサーバへの統合


ホワイトペーパーダウンロード

シグナルコンディショニングにおける3つのエラーを回避し正しい計測結果を得るには?

  • シグナルコンディショナーに悪影響を与える要因
  • 計測精度はどのような影響を受けるか
  • 高精度計測チェーンのセットアップ方法

ダウンロード

高精度でノイズに強い

  • 力センサ、ロードセル、トルクセンサ、圧力センサ、ならびに温度および標準化された信号(電流/電圧)の高速およびデジタル信号調整
  • 電気的干渉を伴う過酷な環境でも計測精度を確保
  • デバイスに直接格納されているEN10204準拠のキャリブレーションレコードによる完全なトレーサビリティ
  • 爆発性雰囲気の中での使用は、SD01Aツェナーバリアとの組み合わせで可能 (Ex II (1) GD, [EEx ia]IIC).

信頼性の高い機械量/電気量データ取得

生産ラインを高速化

  • 高サンプリングレートと高い帯域幅により、自動化環境で簡単統合
  • デバイス上のディスプレイと直観的なWebインターフェイスを使用した迅速なセットアップと診断
  • TEDS *(トランスデューサ電子データシート)の完全サポート
  • ClipX-busを使用すると、最大6つのデバイス間で測定値の伝送と計算が可能
  • インタフェース:PROFINET、EtherCAT®、PROFIBUS、イーサネット/ IP™、Modbus-TCP、アナログ(V / mA)デジタルI / O、イーサネット(TCP / IP)
  • OPC-UAサーバへの統合

簡単セットアップ WEBインタフェース経由で時間とコストをかけず遠隔でのシステム診断や自動チャンネル設定が可能(TEDSサポート)

効率アップ、次世代志向

  • 個別システムのセットアップとコンパクト設計
  • ClipXバスを介した瞬時の計測データ送信
  • 数値/演算チャネル(スマート機能)により、シグナルコンディショニング/解析と簡単なパラメータ設定が可能
  • 個別に設定可能な入出力信号およびフィールドバスインタフェース
  • 工具を使わず簡単、安全にデバイスを設置
  • Ethernetやフィールドバス、内部オブジェクトディレクトリによるデバイスの個別設定
  • LabVIEW, Visual Studio .NET under Windows as well as Linuxとの統合が可能

優れたコストパフォーマンス、次世代志向のオープンオートメーション標準をサポート

デジタル/アナログ対応をワンストップサービスで

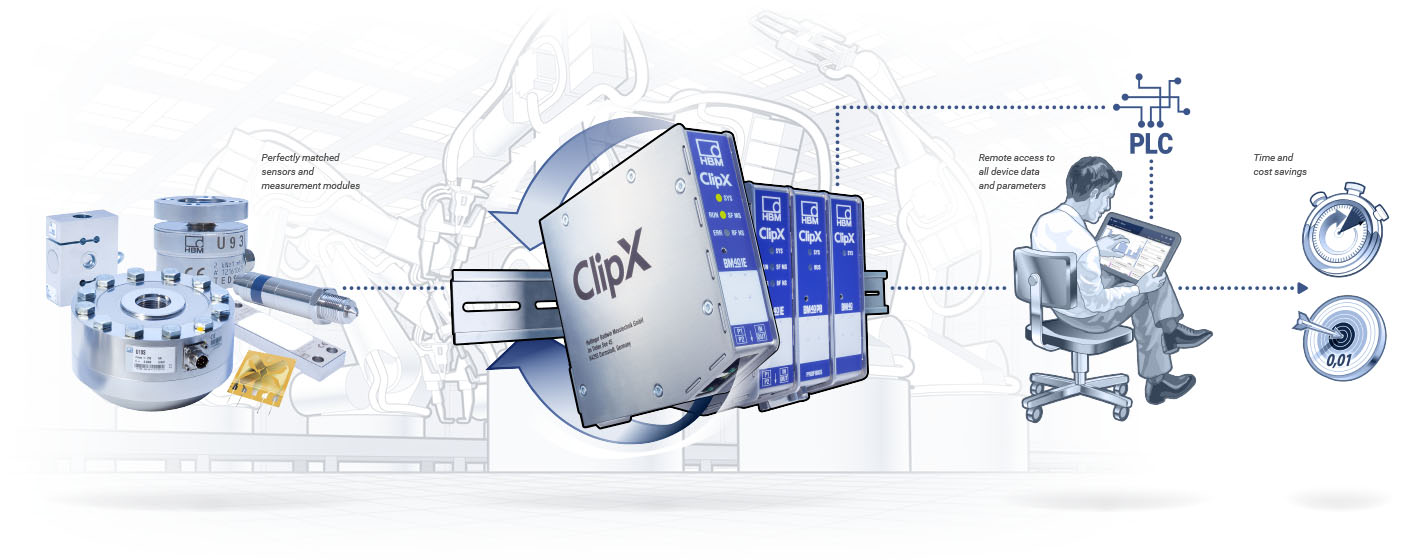

HBMは、完全にマッチした親和性の高いセンサと測定モジュールを開発し、組み合わせによるシステムは不連続性がなく正確で信頼できる計測結果を提供します。 ISO9001、ISO14001、および認定されたHBM校正ラボ(DAkkS)に準拠した認定は、ISO 17025に準拠して測定チェーンの品質を追跡することを保証します。

ClipXモジュールの校正証明書:ダウンロードはこちらから

最先端のデジタルとアナログの自動化インタフェースにより、すべての計測チェーンを総合制御システムに簡単に統合できます

直感的なWEBインタフェース

ご購入後にすぐに利用可能-習熟を必要としないWEBベースのインタフェース

  • すべてのブラウザベースのデバイス(およびモバイルデバイス)をサポート
  • 3段階のユーザー管理によるタッチスクリーンコントロール
  • 企業ネットワークまたはインターネットを介したリモート保守
  • WiFiルータを使用してモバイルデバイスでも使用可能
  • ヘルプ機能付多言語ユーザインタフェース

ライブデモはこちらから

個別のシステム設定が可能

ClipXによれば、高速に最大6個の準同期デバイスを使用して個々の測定チェーンと測定システムを簡単にセットアップすることができます。オプションでフィールドバスでリンクし、アプリケーションで複数のフィールドバスを使用できます。.

  • ステータス(診断)を含む測定値は、ClipXバスを介して送信
  • ヘッドモジュールを追加する必要がなく、コストを削減
  • 合計、ピーク値、またはコントロールなどのすべての信号の直接処理
  • マルチクライアント機能により、すべてのインターフェイスを同時に、リアルタイムで使用
  • デジタル入力と出力で高速制御が可能
  • 監視タスク(例えば、アラーム)





チュートリアルを見る:ClipXのセットアップ

  • 追加ツールなしに機器をセットアップ
  • プラグ&プレイで使用を開始
  • 直感的なWEBインタフェースで即座にアクセス


ホワイトペーパのダウンロード

Industry 4.0 - 製造プロセスの最適化にむけて

  • 最新シグナルコンディショナーによる製造ライン最適化でより高いアウトプットを実現

ダウンロード

IIoT:モノのインターネットをサポート

  • TEDSや各種アシスタント機能でパラメータ設定を容易化
  • 診断や解析の先進機能を備えたスマートデバイス
  • PLCやPC、サービスインタフェースとのパラレル動作が可能
  • 柔軟性の高い自動化インタフェースの装備、クラウドへのデータロギングが可能な次世代設計

シグナルコンディショナーClipX-ラインナップ

BM40モジュール

アナログ出力、(V / mA、)デジタルI / O OPC-UA およびイーサネット(TCP / IP)インタフェース

BM40PBモジュール

アナログ出力、(V / mA、)デジタルI / O、Ethernet(TCP / IP)、OPC-UA 、 Profibus(DPV1)インタフェース

BM40IEモジュール

アナログI / O(V / mA、)デジタルI / O、イーサネット(TCP / IP)、OPC-UA 、PROFINET、Modbus-TCP、EtherCAT®、イーサネット/ IP™


ホワイトペーパのダウンロード

先進の自動化システム

  • 自動化技術とは何か
  • 革新的な自動化のコンセプト

ダウンロード

シグナルコンディショナー ClipX用アクセサリ

  • ePLANマクロ
  • 3Dモデル (STEP files)

お持ちのClipXを簡単にWi-Fiネットワークに接続:ダウンロードはこちらから free HBM Web Launcher app (Android only)

ClipX用アクセサリ

  • ePLANマクロのフリーダウンロード
  • 3Dモデル (STEP files)

詳細はデータシートおよび取扱説明書でご確認ください。


CAD図面をダウンロードする
ClipX 製品CAD図面

ClipX技術資料ダウンロード

タイトル/詳細言語
データシート
ClipX - Caractéristiques techniques French
ClipX - Data Sheet English
ClipX - Datenblatt German
ClipX - Folha de dados Portuguese
ClipX - Hoja de características Spanish
ClipX - Prospetto dati Italian
ClipX - データシート Japanese
ClipX - 数据表 Chinese
ClipX - спецификация Russian
ClipX - 데이터 시트 Korean
ブローシャー
ClipX - Brochure English
ClipX - Brochure French
ClipX - Broschüre German
ClipX - Folheto Portuguese
ClipX - Folleto Spanish
ClipX - Opuscolo Italian
ClipX - パンフレット Japanese
ClipX - 小册 Chinese
ClipX - 브로셔 Korean
操作マニュアル
ClipX - Operating Manual English, German
ClipX - руководство Russian
クィックスタートガイド
ClipX - Quick Start Guide English, German, French, Italian, Chinese
ClipX - Quick Start Guide & Safety Instructions English, German
各種証明書
ClipX - Ethernet/IP - ODVA Certificate English
ClipX - ProfiNet-Certificate English
Declaration of Conformity
1-KAB, K-KAB (cable)- 適合宣言 多言語
ClipX BM40/BM40PB/BM40IE - EU Declaration of Conformity 多言語
Device Descriptions
ClipX EDS files (Ethernet/IP)

ClipX device description for Ethernet/IP.

Date: 09/2018  |  Size: 4 KB

多言語
ClipX EDS-file-creator for Ethernet/IP

The tool reads the current configuration and the user-defined channel names from the ClipX and writes them to the .eds file.

Even if the configuration is individual, ClipX inserts all the channels that can be added as parameters in the file,

so that when the configuration is changed in ClipX, they can be taken over in the PLC software without creating a new .eds file.



Date: 08/2020  |  Version: 1.0  |  Size: 512 KB

多言語
ClipX GSD files (Profibus)

ClipX device description files for Profibus (DPV1)

Date: 03/2018  |  Size: 2 KB

多言語
ClipX GSDML files (ProfiNet)

ClipX device description files for ProfiNet RT and IRT.

Date: 06/2018  |  Size: 28 KB
関連情報: Release Notes

多言語
ClipX XML files (EtherCat)

ClipX device description file for EtherCat.

Date: 03/2018  |  Size: 3 KB

多言語
ファームウェア
ClipX Firmware and WebServer

Archive including all current files for firmware and ClipX WebServer.

To update firmware and WebServer the existing WebServer in the ClipX can be used (no additional software or hardware needed).

Date: 08/2023  |  Version: 3.4.1  |  Size: 5 MB
関連情報: Release Notes

多言語
ソフトウェア
ClipX API-LINUX Library and Software-Example

This is a description of the open ClipXApi.dll with code-examples in C#, C and C++ for implementing ClipX in customized LINUX software applications.

The ClipX LINUX-API is based on a communication to the object directory of ClipX and uses its internal fifo storage.

ClipX uses a fixed sample rate of 19.2 kHz. The transfer rate of the values from ClipX to catman can be set from 0.1Hz to 1kHz.

Legal notice: This example does not imply any warranty or guarantee.

Date: 09/2019  |  Version: 1.0  |  Size: 475 KB

多言語
ClipX API-WINDOWS Library and Software-Example

This is a description of the open ClipXApi.dll with code-examples in C#, C and C++ for implementing ClipX in customized WINDOWS software applications.

The ClipX WINDOWS-API is based on a communication to the object directory of ClipX and uses its internal fifo storage.

ClipX uses a fixed sample rate of 19.2 kHz. The transfer rate of the values from ClipX to catman can be set from 0.1Hz to 1kHz.

Legal notice: This example does not imply any warranty or guarantee.



Date: 09/2019  |  Version: 1.1  |  Size: 5 MB

多言語
ClipX CAE data for ePLAN Electric P8

Macro-project containing CAE data for ePLAN Electric P8.

Date: 01/2018  |  Size: 22 MB

多言語
ClipX DELPHI-Software-Example

This example considers a simple example for data-viewing and setup for ClipX.

It is available as It is available as EXE-file and source-code for DELPHI XE7.

Legal notice: The example given is intended to illustrate the integration of ClipX via Ethernet(TCP/IP) into a DELPHI-application.

This example does not imply any warranty or guarantee.



Date: 12/2018  |  Version: 1.0  |  Size: 4 MB

多言語
ClipX LabView-Software-Example

This example considers a simple example for data-viewing and data-storage for ClipX.

It is available as executable-file and source-code for LabView 2018.

Legal notice: The example given is intended to illustrate the integration of ClipX via Ethernet(TCP/IP) into a LabView-application.

This example does not imply any warranty or guarantee.

Date: 12/2018  |  Version: 1.2  |  Size: 176 MB

多言語
ClipX OPC-UA Client-Server Software-Example

This example considers a simple example for OPC-UA communication with data-viewing and data-storage for ClipX.

ClipX acts as OPC-UA server and the PC application as OPC-UA client. Minimum hardware required for ClipX is version 2.0

Legal notice: The example given is intended to illustrate the integration of ClipX via Ethernet(TCP/IP) into OPC-UA-application.

This example does not imply any warranty or guarantee.



Date: 09/2019  |  Version: 4.1  |  Size: 6 MB

多言語
ClipX Parameter Set Reader

This service-tool visualizes, transfers and stores parameter settings from a ClipX compressed parameter-set file in a txt-file. Legal notice: The tool do not imply any warranty or guarantee



Date: 12/2019  |  Version: 1.2  |  Size: 236 KB

多言語
ClipX Universal PLC-Example

This example considers a simple demo-project, how to integrate ClipX in several plc-networks which are based on Ethernet, e.g. Modbus-TCP.

Therefore, the possibility of transmitting non-real-time data via field bus is used. These data do not interfere the fieldbus data.

Legal notice: The example given is intended to illustrate the integration of ClipX via Ethernet(TCP/IP) into a LabView-application.

This example does not imply any warranty or guarantee.



Date: 05/2019  |  Version: 1.0  |  Size: 19 MB

多言語
HBM Device discovery

Java tool for finding HBM devices in Ethernet-networks even with non-configured network-settings. Unzip and copy the file to the PC and run it. All HBM devices will be shown in the network. Right mouse-click opens a menu to read and setup the device network-settings. Note: Java has to be installed on the PC.

Date: 03/2018  |  Size: 270 KB

多言語
Tech Notes
ClipX TechNotes

This is a collection of technical application reports for typical requirements around ClipX.

They show a step-by-step solution up to the running project in ClipX.

Available languages: English

  • ClipX running direct and indirect force measurements
  • ClipX configuration with sensor adjustement-assistant
  • ClipX running IEPE- and piezoelectrical sensors
  • ClipX using Wireless-Technology (Wlan)
  • ClipX using TEDS-Editor to read/write TEDS-data
  • ClipX 1/4-SG-bridge measurement
  • ClipX Reference-measurements
  • ClipX with calculated channels and ClipX-bus:
    • Result-(summing) signal with x,y-components
    • 6x6 Matrix compensation
    • PID-controller
    • Automatic-mean calculation (CW)
    • Stand-still detection
    • Event-counter
    • Mechanical-work calculation
    • Tolerance-windows
    • Methods of Peak-measurements
  • ClipX integration in an automation-network
    • ProfiNet (Isonchronus-Real-Time (IRT) with TIA-portal (Siemens)
    • Profibus with Simatic-Manager (Siemens)
    • EtherCat with TwinCAT (Beckhoff)
    • Ethernet/IP with SoMachine (Schneider)
    • Modbus-TCP with SoMachine (Schneider)
    • OPC-UA Client-Server application
    • Several 3.party software integration

Legal notice: The examples given are intended to illustrate the solution and integration into ClipX.

The examples do not imply any warranty or guarantee.
