Almacena los datos medidos con una fiabilidad absoluta.

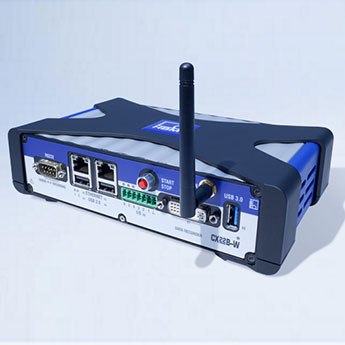

QuantumX CX22B-W, un registrador de datos autónomo con frecuencias de muestreo de hasta 5 MS/s
El QuantumX CX22B-W es un registrador de datos autónomo y extremadamente fiable que recopila, analiza y almacena magnitudes de medida mecánicas, eléctricas o térmicas, pero también señales de bus de un vehículo, de cámaras, ruedas dinamométricas o GPS directamente en el dispositivo. Tiene una capacidad de computación enorme (frecuencia de muestreo total de hasta 5 MS/s) y facilita la adquisición, cálculo, automatización, visualización y grabación de las señales medidas, de forma absolutamente fiable.
Estas características hacen del QuantumX CX22B-W un equipo ideal para adquisición móvil de datos de carga o de conducción en carretera, o para pruebas de maniobrabilidad. Igualmente, es idóneo para efectuar mediciones de larga duración sin operario (por ejemplo, en puentes y otras estructuras), utilizando cualquier número de canales que se desee.
El CX22B-W pertenece a la serie de amplificadores de medida QuantumX, integrada por equipos universales y modulares. Por ello, puede utilizarse con cualquier topología (centralizada, distribuida) y ofrece una flexibilidad máxima en términos de configuración de las mediciones.
Registro de datos fiable
- Un registrador de datos para las señales de todos los módulos QuantumX y SomatXR y, además, para GPS (USB, RS232), CANbus (a través de MX840B, MX471B), ruedas dinamométricas, vídeo, etc.
- Frecuencia de muestreo total de hasta 5 MS/s, 240 GB SSD
- Estable incluso en caso de cortes bruscos (solo se pierde el último bloque de datos)
Potentes funciones de cálculo
- Potente cálculo de señales en línea, integrado en el módulo del registrador de datos.
- Funciones típicas: calculadora científica, cálculo de matrices, recuento (Rainflow, tiempo en cada nivel, etc.), análisis de frecuencia (FFT y disparo), cálculos de potencia eléctrica y eficiencia.
- Opciones para automatización de ensayos.
Las amplias funciones de cálculo y análisis del equipo proporcionan conclusiones correctas, directamente en el campo.
Uso flexible
- Se puede acceder al módulo de varias maneras: mediante una pantalla táctil conectada directamente, a través de una tablet, por LAN o WLAN, o mediante acceso remoto encriptado desde la red móvil.
- Modular y escalable hasta 1000 canales.
- Uso distribuido o centralizado en combinación con otros módulos QuantumX o SomatXR, en un amplio espectro de topologías.
Es fácil de usar y se integra rápidamente con su configuración de ensayo.
Facilidad de análisis con el software catman

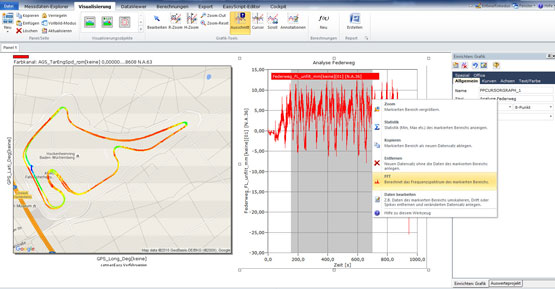

catman simplifica la parametrización, adquisición y visualización de sus datos medidos. En la versión más reciente de catman (4.2) es posible combinar la adquisición de datos de carga en carretera con visualización de datos GPS sobre mapas, o consultar estadísticas avanzadas de las mediciones de larga duración (monitorización de infraestructuras), incluidas notificaciones.
Descargar archivos STEP CAD para este producto | ||
---|---|---|
QuantumX CX22B-W Archivos STEP CAD | ||
QuantumX CX22B-W Archivos STEP CAD para accesorios |
Documentación de producto y descargas de CX22B-W
Título / Descripción | Idioma | Productos | Idioma | Tipos de contenido |
---|---|---|---|---|
Hojas de datos | ||||
QuantumX CX22B-W/CX22B - Data Sheet | English | |||
QuantumX CX22B-W/CX22B - Datenblatt | German | |||
QuantumX CX22B-W/CX22B - データシート | Japanese | |||
QuantumX CX22B-W/CX22B - 数据表 | Chinese | |||
Catálogos | ||||
QuantumX - Brochure | English | |||
QuantumX - Brochure (US-Version) | English (US) | |||
QuantumX - Broschüre | German | |||
QuantumX - Folheto | Portuguese | |||
QuantumX - ブローシャー | Japanese | |||
QuantumX - 小冊 | Chinese | |||
Manuales de instrucciones | ||||
HBM Common API - User Manual | English | |||
HBM LabVIEW Driver - User Manual | English | |||
QuantumX - Bedienungsanleitung | German | |||
QuantumX - Operating Manual | English | |||
QuantumX - 操作說明 | Chinese | |||
QuantumX - 設置マニュアル | Japanese | |||
QuantumX CANape Driver - Operating Manual | English, German | |||
QuantumX CANbus - Operating Manual | English, German | |||
QuantumX CX22B / CX22B-W - Operating Manual | German, English | |||
QuantumX CX22B / CX22B-W - Operating Manual | Chinese | |||
Accesorios | ||||
QuantumX / SomatXR - Uninterruptible Power Supply - Data Sheet | English | |||
QuantumX / SomatXR - Unterbrechungsfreie Stromversorgung - Datenblatt | German | |||
QuantumX BPX001/BPX002/BPX003 Backplane - Information | English, German | |||
QuantumX BPX002-SIDE Desktop-Kit – Information | English, German | |||
QuantumX case clips (CASECLIP) - Istruzioni di montaggio | Italian | |||
QuantumX case clips (CASECLIP) - Mounting Instructions | English | |||
QuantumX Portamoduli BPX001 - Informativa | Italian | |||
Driver | ||||
HBM CANape Driver 32-bit
The driver allows you to integrate all QuantumX / SomatXR measurement modules in CANape 13.0, 14.0, 15.0 and 16.0. Date: 06/2018
|
Version: 4.1.5
|
Size: 11 MB
| Multiidioma | |||
HBM CANape Driver 64-bit
The driver allows you to integrate all QuantumX / SomatXR measurement modules in CANape 17.0 and 18.0. Date: 01/2021
|
Version: 4.1.6
|
Size: 12 MB
| Multiidioma | |||
HBM Common API 6.3
The HBM Common API enables users to develop their own PC software application, integrating DAQ systems like QuantumX, SomatXR, PMX and MGCplus. The download includes the free of charge API as well as documentation and example programs in C#. Date: 05/2024
|
Version: 6.3
|
Size: 29 MB
| Multiidioma | |||
HBM DIAdem Driver
The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in DIAdem (32 and 64 Bit). Only available in German language. Please see the Release Note for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. Date: 03/2024
|
Version: 1.4.0
|
Size: 67 MB
| Multiidioma | |||
HBM LabVIEW Driver 32-bit
The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in LabVIEW. Please see the Release Notes for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. Date: 02/2021
|
Version: 4.0
|
Size: 24 MB
| Multiidioma | |||
HBM LabVIEW Driver 64-bit
The driver allows to integrate QuantumX, SomatXR, PMX and MGCplus in LabVIEW. Please see the Release Notes for further details and requirements. The download can be used 30 days as trial. To unlock the license, a license key must be purchased. Date: 02/2021
|
Version: 4.0
|
Size: 24 MB
| Multiidioma | |||
Declaration of Conformity | ||||
1-KAB, K-KAB (cable)- Declaración de Conformidad | Multiidioma | |||
CX22B-W - Declaración de conformidad UE | Multiidioma | |||
QuantumX - Declaración de conformidad UE | Multiidioma | |||
QuantumX - Product Type Pattern Approval Russia 2012 | Russian | |||
QuantumX - Product-Type Pattern Approval Russia 2017 | Russian | |||
Software | ||||
catman Easy / AP / PostProcess
Software for data acquisition, visualization, analysis and reporting of measurement data for your PC or QuantumX/SomatXR Data Recorder. Date: 05/2024
|
Version: 5.6.3
|
Size: 473 MB
| Multiidioma | |||
HBM Device Manager
The HBM Device Manager is a service tool to scan the network for available HBM devices. Date: 12/2019
|
Version: 2.0
|
Size: 7 MB
| Multiidioma | |||
PROFINET GSDML File
GSDML file and picture for QuantumX / SomatXR CX27C Gateway Date: 06/2018 | Version: V2.33 | Size: 5 KB | Multiidioma | |||
QuantumX / SomatXR System Package
Hint: Please unzip the package and then execute “start.exe” to install: • MX Assistant • HBM Device Manager • All manuals, datasheets, step files, online help files, leaflets, etc. Date: 07/2023
|
Version: 4.14.1
|
Size: 609 MB
| Multiidioma | |||
Tech Notes | ||||
TECH NOTE - QuantumX Data Recorder operated by Apple’s iPad
This Tech Note describes how to operate a QuantumX Data Recorder CX22B-W by an iPad tablet from Apple wirelessly. | English | |||
Integrating Kistler RoaDyn® Wheel Force Transducers into QuantumX / SomatXR Data Recorder
This Tech Note describes how to connect and acquire data from RoaDyn / KiRoad Performance with the central Data Recorder CX22B from the QuantumX or SomatXR series. | English | |||
TECH NOTE - 3rd Party Device Integration into catmanAP or QuantumX Data Recorder CX22B‐W
This Tech Note describes how to integrate data from a 3rd party device via RS232 into the data file recorded with QuantumX Data Recorder CX22B‐W. The shown example uses the Visual Basic for Application scripting engine, called EasyScript integrating additional signals. Easy Script is part of catmanAP or can be added as plug‐in to CX22B‐W. | English | |||
TECH NOTE - IEEE1588:2008 Precision Time Protocol in Data Acquisition and Testing
This TECH NOTE explains the highly accurate time sync mechanism Precision Time Protocol or short PTP, its advantages and its use in Test & Measurement applications. | Multiidioma | |||
TECH NOTE - IEEE1588:2008 PTPv2-Switches and Grandmaster Clocks
This TECH NOTE shows available and tested PTP components together with HBM equipment and can be used as reference source giving you some recommendations. | Multiidioma | |||
TECH NOTE - QuantumX Data Recorder and GPS / GNS / IMU
This Tech Note describes satellite based position measurement in general and its value in mobile data acquisition and analysis, helpful in many different applications and industries. It describes different sensors and Inertial Measurement Units (IMU) and the HBM tool chain QuantumX data acquisition system, catman and GlyphWorks for post-process data analysis. | English | |||
TECH NOTE - QuantumX Data Recorder and Video Camera integration
This Tech Note describes the use of video in general and its value in mobile or stationary data acquisition jobs. It describes different types of cameras and recording of its video stream with the QuantumX Data Recorder CX22B-W. It also describes video based data analysis in catman from HBM. | English | |||
TECH NOTE - Using the QuantumX Data Recorder CX22B-W as Gateway
This Tech Note describes how to prepare the QuantumX Data Recorder as a gateway so that you can route all incoming data from modules to a PC via the CX22B-W and Gigabit Ethernet. The following graphics show the system used in a distributed and in a centralized configuration (integrated into a backplane). | English | |||
TECH NOTE: Integrating GPS / GNSS / IMU Sensors into QuantumX or SomatXR Data Recorder for Mobile Data Acquisition and Map Based Data Analysis
This Tech Note describes satellite-based position measurement in general and its value in mobile data acquisition and analysis. | Multiidioma | |||
TECH NOTE: Using WLAN in large scale measurement and telemetry applications
This Tech Note describes why WLAN is one of the most suitable wireless network technologies for large scale measurement and telemetry applications. It will show its potential, advantages and challenges, as well as how it’s already used in real life applications. | English | |||
