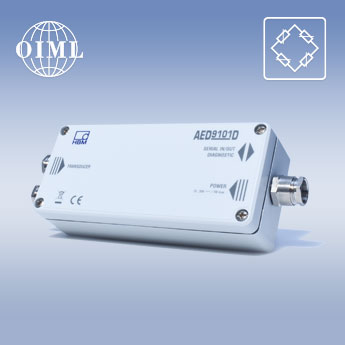

AED数字传感器仪表：模拟传感器数字化全能选手
AED 传感器仪表可将模拟称重传感器数字化，确保新系统或现有系统的数字精度。并带有总线接口和PC集成软件，安装调试工作快速、方便。
- AED 测量链: 由AD103C测量放大板、主机和 PanelX 软件组成
- 精度等级: 0.01 带有 10000 d 测试报告，III级，符合OIML R76
- 接口: RS-232, RS-485, CANopen, DeviceNet, 和 Profibus DP V1
- 测量输入: 两个控制输入和四个控制输出
高测量质量
- AD103C：用于静态和动态应用的直流放大板
- 高采样率（1200Hz）和高分辨率
- RS-232诊断接口
认证
- OIML R76 10000 d III 级 认证报告
- 存储用户设置
- 灌装功能命令集
- 用于非自动秤（NAWI）和自动秤（AWI）
符合 OIML R76 标准，可用于各种法定贸易秤
结实
- 完美匹配的总线接口，简单方便
- IP65防护等级
- 设备通过PC和免费的PanelX软件启动
通用和高投资安全性。
AED 主机概述：
AED 主机提供不同的接口和外部电压。请根据您的应用程序选择合适的设备：
接口 | 外部供电电压 | |||||||
RS-232 | RS-485 | RS-485 | CAN | Device | Profibus | Digital | ||
AED 9101D |  | | |
|
|
|
| 10 ... 30 V |
AED 9201B | | | |
|
|
| 2x DI, 4x DO | 18 ... 30 V |
AED 9301B |
| |
|
|
| | 2x DI, 4x DO | 18 ... 30 V |
AED 9401A |
| |
| | |
| 2x DI, 4x DO | 18 ... 30 V |
AED 9501A |
| |
| | |
|
| 10 ... 30 V |
*RS-485 2-wire = Half-Douplex, RS-485 4-wire = Full-Douplex
All AED Work with Amplifier-board AD103C which gest plugged inside AED.
